Access to camera feeds established
IRIS
Interior Reconnaissance and Inference System
A full interior picture for the operator, before engagement.
Concept of operations

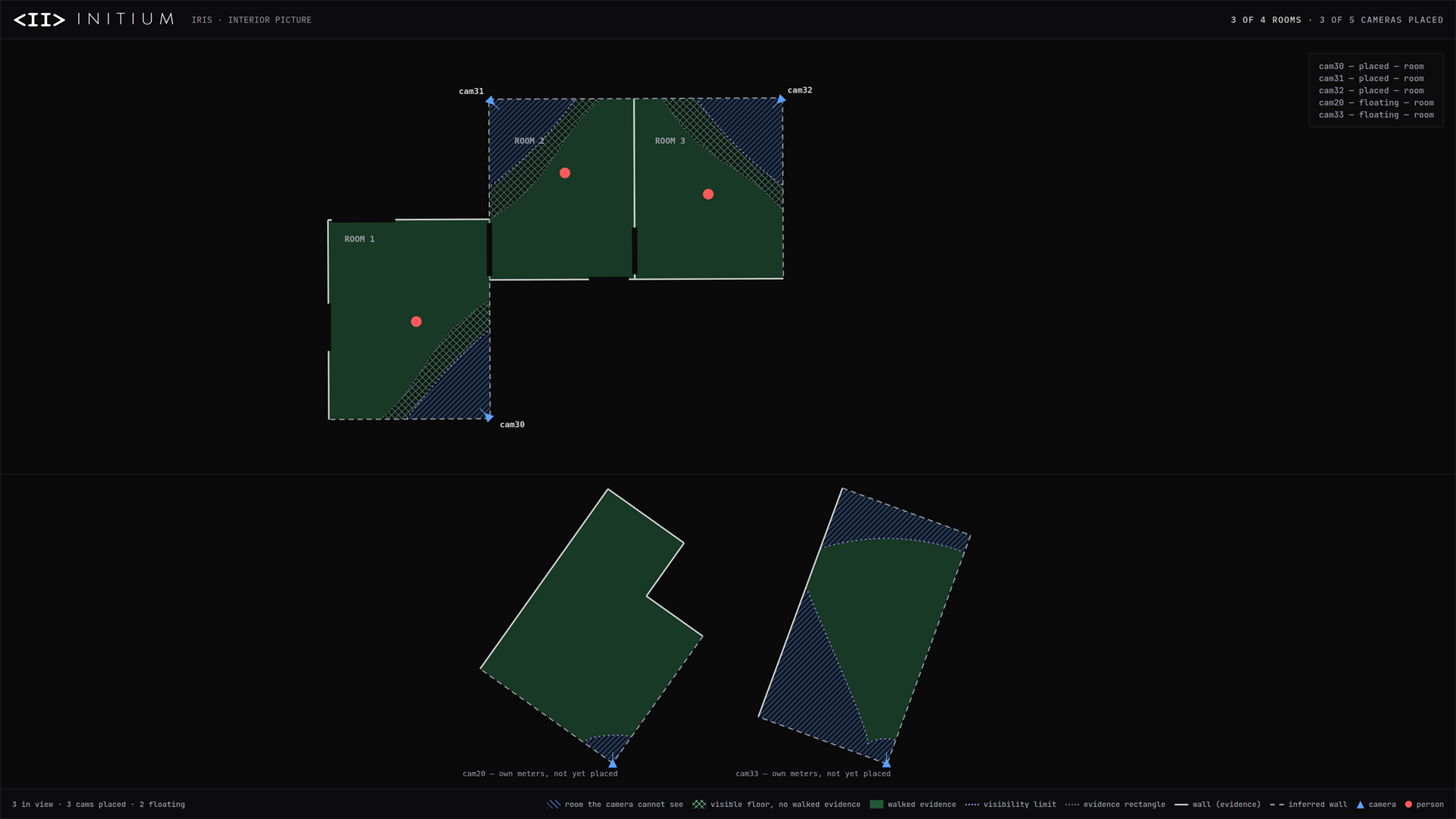

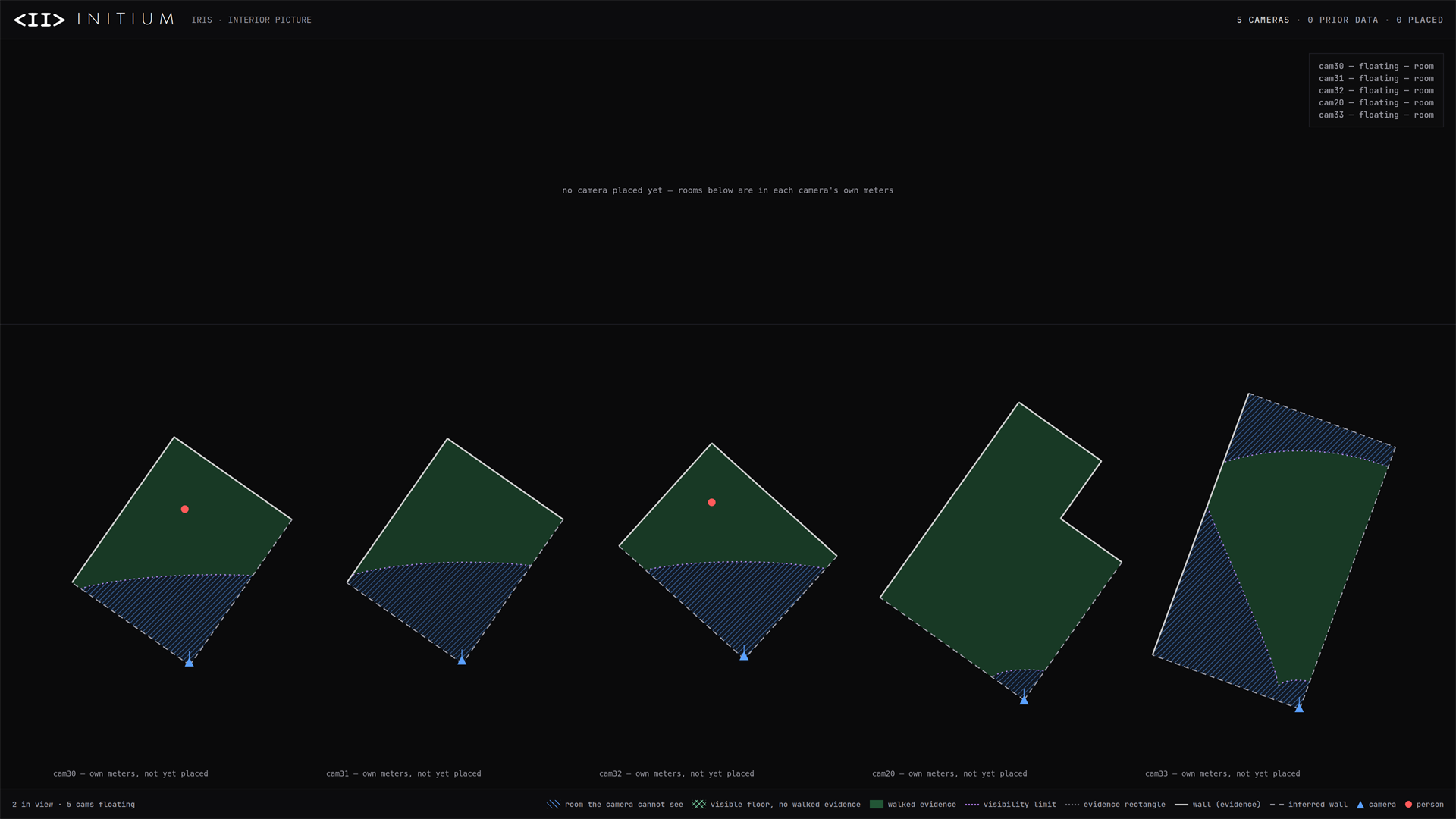

IRIS builds an initial interior picture, tracking every occupant of the structure

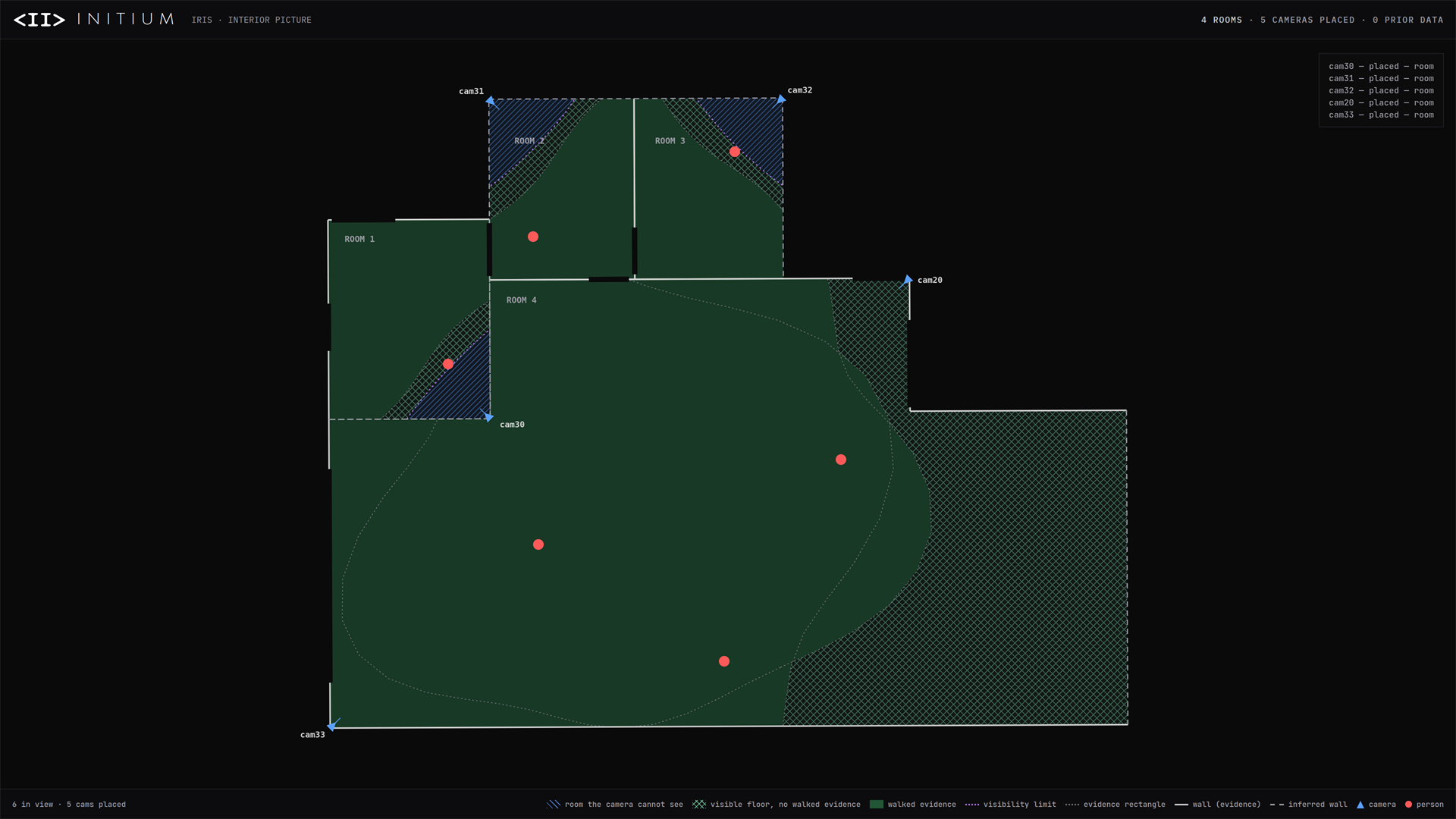

Fidelity increases as intelligence is collected over time
The assault element enters with a full visual of the interior
Description
With access to the camera feed inside a target building established prior by a cyber element or through a hardline connection, IRIS fuses data from the adversary’s own security system to construct a live interior picture for the assault element.
The picture is comprised of a full floorplan with real-time person identification and tracking throughout all visible rooms. The IRIS ruggedized unit is designed to attach to the exterior of an operator’s assault pack, allowing all inference to be conducted on-site with no reach-back, network connectivity or traceable RF signature.
IRIS ruggedization specs
| Parameter | Rating | Detail |
|---|---|---|
| Operating temperature | −60°F to +130°F | Full operating range. |
| Temperature shock | Full range | Rapid transition across the full operating range. |
| Altitude | 30,000 ft | Operational up to 30,000 ft. |
| Seawater immersion | 30 FSW | Operational up to 30 feet of seawater. |
| Drop | 4 ft / 5 ft | Logistic / tactical. |
| Sand and dust | Operational | During and after exposure. |
| Vibration | All profiles | Tactical ground, rotary-wing and fixed-wing. |
| Salt fog | Resistant | Maritime environment. |
| EMI / EMC | MIL-STD-461G | RE102 / RS103 as applicable. |
